<p>Creating labels for machine learning is hard and time consuming, wouldn&#8217;t it be nice to train a model without any? We can with self-supervised learning!</p>
<p>I&#8217;m <a href="https://www.linkedin.com/in/paul-willot-903a6b5b/">Paul Willot</a> from the AI/ML team and in this post I&#8217;ll introduce an experiment we did to get rid of labels by leveraging the structure of Mercari&#8217;s data.</p>
<p>Let&#8217;s dive in!</p>
<h2>Self-supervised learning</h2>
<p>Self-supervised learning, or SSL for short, is a training method free of external supervision. Instead labels are generated from a <b>proxy task</b>. Solving this task will require the model to <b>learn a representation, usable for downstream applications</b>.</p>
<p>The difficulty is of course to define that proxy task! But before showing how to create one let&#8217;s see why SSL might be useful in the first place.</p>
<h4>Why SSL?</h4>
<p>In short: <b>collecting good labels is hard</b>, but raw data is plentiful. SSL allows us to use a large dataset to bootstrap a model, then fine-tune on only a few high quality samples.</p>
<p>Let&#8217;s make a concrete example.</p>
<p>As a Mercari user, when selling an item I can select the category that best describes it, making my item easier to find for buyers. However, picking the correct category is cumbersome.  Machine Learning (ML) can help by suggesting likely categories directly from the item pictures. We can define this problem as a simple classification objective, a common ML task. Good!</p>
<p>However the existing categories, our labels, might have a few issues. Notably </b>class imbalance</b>, <b>label noise</b> (picking among many is hard) and <b>ambiguity</b> as some items straddle categories. The model will also learn a <b>task specific representation</b>, which might be hard to transfer to other tasks.</p>
<p>Those issues come from the need for labels, so not needing any would be great. That&#8217;s where self-supervised learning can help!</p>
<h2>Defining a proxy task</h2>
<p>Various proxy tasks have been crafted for SSL, like solving <a href="https://arxiv.org/abs/1603.09246">jigsaw puzzles</a> or <a href="https://arxiv.org/abs/1803.07728">predicting an image rotation</a>. Recent state of the art methods have focused on simpler proxy, like randomly augmented images, in which the task is defined as obtaining consistent representations despite visual deformations.<br />
For example, in the image of a golden retriever below, after alterations each transformed image (called a view) still contains a recognizable part of the dog.</p>
<p><img src="https://storage.googleapis.com/prd-engineering-asset/2021/10/0ca9bd87-augmented_views.png" alt="augmented views" /></p>
<p style="text-align: center;font-style: italic">Augmented views</p>
</p>
<p>Choosing which augmentations to apply is not easy however. We need to make it hard enough for the model to learn a useful representation, but not too hard that it becomes impossible. Augmentations add design choices and picking the right ones is an <a href="https://link.springer.com/article/10.1186/s40537-019-0197-0?code=a6ae644c-3bfc-43d9-b292-82d77d5890d5">ongoing research topic</a>.</p>
<p>Ideally, we would like to use existing views.</p>
<p><img src="https://storage.googleapis.com/prd-engineering-asset/2021/10/bdb3912f-natural_views.png" alt="natural views" /></p>
<p style="text-align: center;font-style: italic">Natural views</p>
<p>Luckily we have billions of those at Mercari!</p>
<p>When selling, uploading pictures from multiple angles improves buyers&#8217; appreciation, so the large majority of listings have multiple views. We call them <i>natural views</i>, as they are taken to show multiple aspects of an item in a natural context.<br />
We can note that between views, more than just the camera angle might change, for example the shoes above are positioned differently on the box. This is good! We want the model to learn a common representation that is not tied to a particular pose.</p>
<p>Some sets of views might be harder to associate, for example an item and it&#8217;s enclosing box photographed separately. In practice this was not an issue for us as those are relatively rare.</p>
<h2>Contrastive learning</h2>
<p><img src="https://storage.googleapis.com/prd-engineering-asset/2021/10/58783b48-contrastive_example.png" alt="Contrastive learning" /></p>
<p style="text-align: center;font-style: italic">Contrastive learning on a pair of images (credit: <a href="https://ai.googleblog.com/2020/04/advancing-self-supervised-and-semi.html">SimCLR</a>)</p>
<p>Now with those views, we can define a learning objective through <b>contrastive learning</b>, that is: the <b>same views should produce representations that are more similar</b>, and <b>different views should produce representations that are dissimilar</b>. Visually, we can imagine representations of views of the same item being pushed closer together, and of different items being pushed apart, as the figure above illustrates.</p>
<p>Note that &quot;embedding&quot; and &quot;representation&quot; are used interchangeably in the litterature, both stand for a 1 dimensional scalar vector in a SSL context.</p>
<p>Contrastive learning is related to <a href="https://proceedings.neurips.cc/paper/1993/file/288cc0ff022877bd3df94bc9360b9c5d-Paper.pdf">siamese networks</a>, an older ML technique, but has regained popularity in the last two years with <a href="https://arxiv.org/abs/1911.05722">numerous</a> <a href="https://arxiv.org/abs/2002.05709">methods</a> narrowing the gap with supervised training on the ImageNet benchmark. This <a href="https://ai.googleblog.com/2020/04/advancing-self-supervised-and-semi.html">SimCLR blog post</a> is a good place to go deeper.</p>
<p>Introduced by the <a href="https://arxiv.org/abs/2006.07733">Bootstrap your own latent</a> paper, momentum based methods have also appeared recently. They simplify the implementation by using only positive pairs and address the issue of large batches. I recommend the <a href="https://arxiv.org/abs/2011.10566">SimSiam paper</a> to understand momentum learning.</p>
<p><img src="https://storage.googleapis.com/prd-engineering-asset/2021/10/8d036056-ssl_moby_structure.png" alt="MoBY self-supervised method" /></p>
<p style="text-align: center;font-style: italic">SSL with contrastive loss and momentum, aka MoBY (credit: <a href="https://arxiv.org/abs/2105.04553">Self-Supervised Learning with Swin Transformers</a>)</p>
<p>Latest research even combines the two, like <a href="https://arxiv.org/abs/2105.04553">MoBY</a> that we used in our experiment.</p>
<p>The key point in these methods is that we can create models that obtain a <b>consistent representation of the subject across multiple views</b>.</p>
<p><img src="https://storage.googleapis.com/prd-engineering-asset/2021/10/afdedcb6-similarity_listings_ssl.png" alt="Distance of representations within and between listings" /></p>
<p style="text-align: center;font-style: italic">Distance between representations of views within and outside listings.</br>Each quadrant is one listing, the innermost links are between listings </br>green = similar, red = dissimilar</p>
<p>We were able to confirm this in our dataset, as shown above. After training, items within a listing are more similar than across listings, even with large changes in poses or a tight zoom on an object detail.</p>
<p>Regarding training, a few tips that helped during our experiment:</p>
<ul>
<li>Large datasets are necessary for any non-trivial task; think millions of samples</li>
<li>For training, with pre-trained weights you can get by with a couple of GPU-days, otherwise a couple of weeks</li>
<li>Large models are easier to train, ResNet-50 is still a solid baseline in 2021</li>
<li>A simple method goes a long way, <a href="https://github.com/lucidrains/byol-pytorch#byol--simsiam">start with SimSiam</a></li>
<li>SSL is neat but if you already have labels, use them! It will be more accurate and faster to train</li>
</ul>
<h2>Using the learned representation</h2>
<p>We have a few ways to develop downstream applications using the representations obtained from these images</p>
<p>Using labels, we can train a </b>specialized model on top of the learned embeddings</b>, which will require fewer samples as the input space is smaller and simpler (compared to raw images).</p>
<p>We can also do a <a href="https://en.wikipedia.org/wiki/K-nearest_neighbors_algorithm">nearest neighbor search</a> by looking at the closest representations to infer the properties of a sample. The advantage is that we don&#8217;t need further training, and we can leverage any attributes of our neighbors even if poorly structured.<br />
We could compute the cosine similarity (or other <a href="https://en.wikipedia.org/wiki/Kullback%E2%80%93Leibler_divergence">divergence measure</a>) between each sample pairs directly, but at Mercari&#8217;s scale it quickly become computationally intractable. Instead we can leverage existing vector database search like <a href="https://github.com/facebookresearch/faiss">FAISS</a> or <a href="https://github.com/google-research/google-research/tree/master/scann">ScaNN</a> to search millions of samples in a few milliseconds.</p>
<h4>Conclusion</h4>
<p>Even without labels we can train a useful model by leveraging the existing structure of our data.</p>
<p>At mercari we leverage ML across the board, from <a href="https://engineering.mercari.com/en/blog/entry/pricing-guidance-system/">pricing recommendation</a>, <a href="https://engineering.mercari.com/en/blog/entry/2019-09-12-130000/">fraud detection</a>, <a href="https://engineering.mercari.com/en/blog/entry/20210702-develop-general-customer-profiling-platform-to-host-machine-learning-models/">customer profile customization</a>, <a href="https://engineering.mercari.com/blog/entry/20201202-mediapipe/">object detection at the edge</a>… and much more. Obtaining a general representation directly from images and without costly labels is a helpful tool to address those diverse tasks.</p>
<p>Thank you for reading!</p>


Natural views for self-supervised learning

<h1>Introduction</h1>
<p>Hello! My name is <a href="http://twitter.com/kentandx" title="@kentan">@kentan</a>, and I work as an Engineering Manager here at Mercari.</p>
<p>Our company’s Customer Reliability Engineering Team has developed what we call the Moderation System, which uses mechanisms like machine learning and rules to detect listings that violate Mercari’s rules. The Moderation System is systematically connected to the Mercari marketplace and has the traits of providing a web-based UI designed for use by Mercari Customer Support in their work cracking down on illegal activity. The system includes elements of frontend, backend, and machine learning technology and has features whose sophistication continues to grow.</p>
<p>Historically, at Mercari the backend, frontend, and machine learning engineering teams have worked separately according to their team and job function. This is why, when we started development on the Moderation System, we had to work together on development as a project team composed of several teams and comprising multiple job functions.</p>

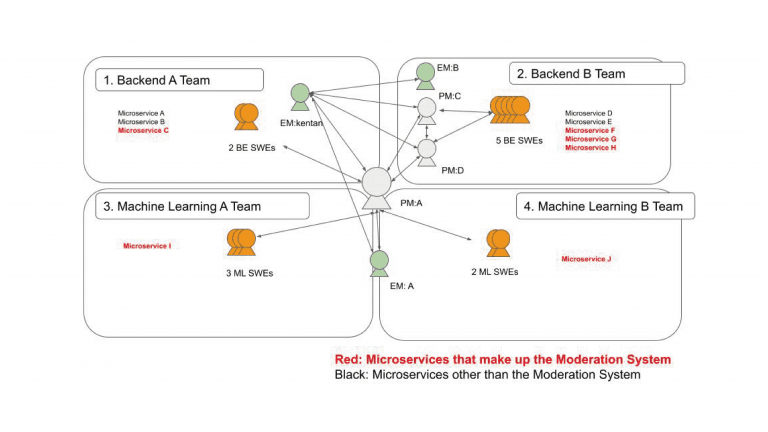

<p>From the get-go, the existing four teams took part in the development of the Moderation System. We did things this way because the technical specialties of each team involved were indispensable to the Moderation System.</p>
<ul>
<li>Backend A Team</li>
<li>Backend B Team</li>
<li>Machine Learning A Team</li>
<li>Machine Learning B Team</li>
</ul>
<p><img src="https://storage.googleapis.com/prd-engineering-asset/2021/10/f6e25fcf-journey-to-a-feature-oriented-team.jpg" alt="" /><img src="https://storage.googleapis.com/prd-engineering-asset/2021/10/0193fdbe-ogp_b.jpeg" alt="" /><br />
From the time we first broke ground on the project, we easily imagined the difficulties of getting four teams to communicate. This is why, in order to keep the members participating in the project on the same page, we created cross-team milestones, and we laid out the format for communication between teams. This worked very effectively, but as one would expect, we could not ignore the problems involved in developing a feature of this size relative to the large number of teams involved. In addition, due to things like some members leaving the company, one of the teams also faced a shortage of engineers and had to restructure their team.</p>
<p>What’s more, as other members were either transferred to different teams or resigned from Mercari, the product owner roles for three teams were consolidated in the hands of a single product manager (PdM). It became necessary to reduce their workload because this one PdM was taking part in the scrum events of three teams.</p>
<h1>Team structure and ownership of microservices</h1>
<p>To solve the problems we encountered, we considered restructuring the teams, and at the same time considered keeping the same team structure and re-examining who held ownership of microservices. This is because we expected that, even if we kept the existing structure of the four teams, we would be able to solve or at least reduce our problems by keeping the development of microservices for Moderation Systems to two or three teams.</p>
<p>Through our discussions, we concluded that we should first look at restructuring our teams rather than transferring ownership. There were two reasons for this:</p>
<ul>
<li>Each team only had a few members, and therefore they could not be expected to be in charge of developing any more microservices than they already were.</li>
<li>Because the teams were divided by job function, they could not inherit a different team’s microservices (i.e., backend teams could not inherit the microservices of machine learning teams).</li>
</ul>
<p>Therefore, we decided not to touch the ownership of microservices and instead looked at restructuring our teams.</p>
<h1>Restructuring the teams</h1>
<p>In restructuring our teams, we first got to work on the areas that we thought would benefit the most from being shuffled. As a result, we ended up merging the Backend A and Machine Learning A teams. Generally speaking, we chose to merge these two teams for the following reasons:</p>
<ul>
<li>Backend A Team was in charge of features used for such things as registering, changing, and applying rules related to detecting listings that violate Mercari’s rules. At the same time, Machine Learning A Team developed and operated machine learning models that identified items that our rules stipulate cannot be listed. Although the two fields of expertise differ from an engineering standpoint, they are extremely close as business domains, and we therefore had very big expectations for the synergy generated by merging the two teams together.</li>
<li>Engineers from Machine Learning A Team had expressed their interest in expanding their areas of expertise into backend engineering. You could say that software development relies almost entirely on the ability and motivation of the talent involved, so we anticipated that our members’ motivation would be conducive to having them work effectively.</li>
<li>Backend A Team and Machine Learning A Team shared the same PdM, and we anticipated that the effect of merging the two teams would also be tremendous from the perspective of the PdM’s job.</li>
</ul>
<h2>How we merged the teams</h2>
<h3>Phase 0: Checking the motivation of our members</h3>
<p>We explained to each team member the purpose behind merging the teams. Then, when we asked them about their intentions, every last member said they could handle the challenges of taking on a new field. You could tell that they were driven. For the machine learning engineers, this would allow them to expand their expertise into the field of backend engineering, and backend engineers could also expand their expertise to include machine learning.</p>
<p>We merged the teams in four stages.</p>
<h3>Phase 1: EM learns domain knowledge</h3>
<p>As the Engineering Manager of Backend A Team, I was put in charge of the merged team as the EM. Personally, my experience was exclusively as a full-stack engineer working mainly on backend engineering, and I had absolutely no job experience working on machine learning. I didn’t have any domain knowledge regarding the development that Machine Learning A Team worked on either. For these reasons, acquiring this knowledge was a top priority.</p>
<h4>Goals</h4>
<ul>
<li>The EM understands the projects of Machine Learning A Team.</li>
<li>The EM understands Machine Learning A Team’s development processes and scrum practices.</li>
<li>The EM knows things about the Machine Learning A Team members like their personalities, skill sets, strengths and areas for improvement, motivations, and career plans.</li>
<li>The EM learns the basics of machine learning so that they can communicate with their team members.</li>
</ul>
<h4>Non-Goal</h4>
<ul>
<li>There were no goals set regarding team members.</li>
</ul>
<h4>Actions</h4>
<ul>
<li>Participated in scrum events such as sprint planning sessions and retrospectives</li>
<li>Participated in the EM meetings for the division to which ML engineers belong</li>
<li>Read past design docs and pull requests</li>
<li>Looked through the past year of Slack posts to get a general sense of what has been discussed</li>
<li>Read the onboarding documents of Machine Learning A Team (Because some materials were lacking content or out of date, we created and updated documents as needed.)</li>
<li>Created pull requests for the projects that Machine Learning A Team developed</li>
<li>Read the reports about experiments conducted when newly creating and improving ML models</li>
<li>Worked to build trust relationships through 1-on-1 sessions with team members</li>
<li>Also learned knowledge about machine learning through books, online courses, and other such sources</li>
</ul>
<h3>Phase 2: Members learn domain knowledge</h3>
<p>Next, team members of each team learned domain knowledge.</p>
<h4>Goals</h4>
<ul>
<li>Backend engineers understand the projects of Machine Translation A Team.</li>
<li>Backend engineers understand Machine Learning A Team’s development processes and scrum practices. They also learn Python, the programming language that the Machine Learning A Team uses.</li>
<li>Machine learning engineers understand the projects of Backend A Team.</li>
<li>Machine learning engineers understand Backend A Team’s development processes and scrum practices. They also learn Go, the programming language that the Backend A Team uses.</li>
</ul>
<h4>Non-Goal</h4>
<ul>
<li>Contributing to development was not one of the goals. (It was okay for the engineers to just focus on learning.)</li>
</ul>
<h4>Actions</h4>
<ul>
<li>Members created an open channel on Slack and used it for Q&amp;A and for studying machine learning and backend engineering.</li>
<li>The two teams held a joint study group and studied domain knowledge.</li>
<li>The Tech Lead of the machine learning team took part in the backend team’s scrum sprint and executed some development tasks.</li>
</ul>
<h3>Phase 3: Unify scrums</h3>
<p>After each and every member had acquired domain knowledge, the groups unified their scrum processes. The teams had brought together their sprint refinement and planning, and so the merged team operated like a single development team.</p>
<h4>Goals</h4>
<ul>
<li>Bring together the separate scrum process of the two teams.</li>
<li>Backend engineers perform development on ML projects.</li>
<li>Machine learning engineers perform development on backend projects.</li>
</ul>
<h4>Non-Goal</h4>
<ul>
<li>Backend engineers create and improve machine learning models.</li>
</ul>
<h4>Actions</h4>
<ul>
<li>As the Scrum Master, the EM led the scrum operations of the unified scrum team. At the same time, in order for other members to take over the role of Scrum Master, the EM also defined the scrum process.</li>
<li>We held a study session in order for members to understand the background of JIRA development tickets. Because JIRA development tickets simply must be high context, it is hard for new employees who join the company to look at a ticket and understand all of its contents. To help with this, we gave the details of and the reasons why a certain development ticket was necessary, and we also worked to explain the business-related reasons behind development.</li>
</ul>
<h3>Phase 4: Unify on-call rotation systems</h3>
<p>Last but not least, we adopted a single on-call system for the entire team. What this meant for our members is that they were on call half as often, which drastically reduced their workload. What’s more, allowances associated with on-call duties were cut in half. For the company, this led to improved cost efficiency on development.</p>
<h4>Goals</h4>
<ul>
<li>Backend Team members can be on call for Machine Learning Team projects.</li>
<li>Machine Learning Team members can be on call for Backend Team projects.</li>
</ul>
<h4>Non-Goal</h4>
<ul>
<li>None (on account of Phase 4 being the final phase)</li>
</ul>
<h4>Actions</h4>
<ul>
<li>With the Tech Lead providing coordination, we discussed what we needed in order for all members to feel at ease when on call. We then discussed what we needed to do for that to happen and compiled our ideas in a strategy document.</li>
<li>Members held drills that role-played situations in which given incidents occurred.</li>
<li>Members created on-call handbooks for each microservice.</li>
</ul>
<h1>Future Outlook</h1>
<p>We have started frontend development as the newly formed Feature Team. Customer support work involves a very complex group of features, and the UI is also within the purview of these duties. The percentage of frontend work that comprises Moderation System development work is substantial, and when we examined this work next to the Feature Team’s concept of executing all of the necessary development within their team, we saw a goal that we wanted them to achieve.</p>
<p>What’s more, for us to work on full-scale frontend development, we naturally must have frontend engineers with robust skills. To this end, we are hiring. Interested? If the answer is yes, be sure to <a href="http://twitter.com/kentandx" title="contact me">contact me</a>.</p>
<h1>Conclusion</h1>
<p>It’s of course no easy task to merge two teams into one when the members’ skills differ as much as the skills of backend engineers and machine learning engineers. I think one reason stood out above all other as to why it was possible for us to succeed at merging teams under these circumstances and without any issues: Our team members worked proactively to merge the teams. With regard to the unifying of on-call duties in Phase 4, all steps, from concrete planning to implementation, were centered on the Tech Lead and were completed with me having almost no involvement in the process as the EM.</p>
<p>Although generally classed as being out of the norm, I think that having an EM fill the role of scrum master was effective. To put it bluntly, when it comes to things where almost any format will work, like day-to-day standup meetings and the writing of tickets, having the EM make decisions about these things skips over a lot of fuss. For the time being, I make a decision, we put it to work, and then continue with scrum development.</p>
<p>In the process, for anything that is no longer a good fit, we discuss making improvements at the sprint retrospective as topics surface.</p>
<p>One issue that we are facing is that engineers with a background in backend engineering, myself included, have not yet learned all of the expert knowledge needed for machine learning, and therefore we cannot create machine learning models yet. Currently, we are in charge of developing systems and applications for machine learning projects, but for us to be able to create machine learning models will require us to look at applying a few more tricks.</p>


How the Machine Learning Team and Backend Team Joined Forces to Create the Feature Team

<p>Hi, I’m Yusuke Shibui, a member of the Image Search and Edge AI team in Mercari Japan. I publicized design patterns for implementing a machine learning model into a production environment. The patterns are available in GitHub as OSS, and I welcome you to take a look if you are interested!<br />
The repository is open for anybody to raise a PR or issue. If you have your own machine learning system pattern, please feel free to share your ideas with us!</p>
<ul>
<li>
<p>GitHub: <a href="https://github.com/mercari/ml-system-design-pattern">https://github.com/mercari/ml-system-design-pattern</a></p>
</li>
<li>
<p>GitHub Pages: <a href="https://mercari.github.io/ml-system-design-pattern/">https://mercari.github.io/ml-system-design-pattern/</a></p>
</li>
</ul>
<h2>Why do we need design patterns for machine learning systems?</h2>
<p>For machine learning models to demonstrate their true value, they must be implemented and used in a production service or internal system. In order to do so, we design a workflow and operation for machine learning as well as related systems to develop an integrated system, but this also uses skills other than machine learning. For instance, while data retrieval, preprocessing, inference, postprocessing, and training pipeline are used from a machine learning perspective, we also need UI/UX design, backend engineering, quality assurance, monitoring and alerts from a software engineering and DevOps perspective.<br />
Even if a machine learning engineer or researcher takes great effort to develop a model to achieve the highest accuracy on the ImageNet dataset, they probably cannot acquire software engineering skills. Some of them may not need those skills in their career. On the other hand, software engineers, including application developers, backend engineers and SREs, might not be familiar with machine learning. Those having both machine learning and software engineering skills or experience are rare.</p>

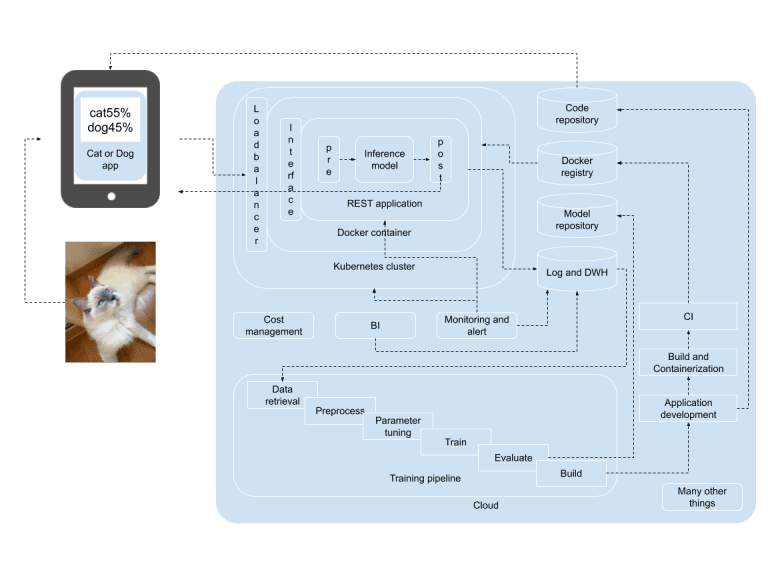

<p><figure class="figure-image figure-image-fotolife" title="Example of overall system design of `Cat or Dog` application"><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20200501174859.png" alt="f:id:shibui-yusuke:20200501174859p:plain" title="f:id:shibui-yusuke:20200501174859p:plain" class="hatena-fotolife" itemprop="image"></span><figcaption>Example of overall system design of `Cat or Dog` application</figcaption></figure>
</p>
<p>The machine learning design patterns aim to fill in the gaps between machine learning engineers and software engineers to integrate the machine learning lifecycle and software engineering manners. One of the goals of developing a system with machine learning is to make a business impact with the model in production. This requires understanding of machine learning specific technologies and implementing them into a business system in an operable structure. The aim of the machine learning design patterns is to organize patterns of practices for “making a machine learning model and workflow into a production system”.</p>
<p>There is a famous diagram in a paper, <a href="https://papers.nips.cc/paper/5656-hidden-technical-debt-in-machine-learning-systems.pdf">“Hidden Technical Debt in Machine Learning Systems”</a>, that depicts components required to run a core machine learning model. The core is located in the center as a small black square, and is surrounded by various systems.</p>
<p><figure class="figure-image figure-image-fotolife" title="Hidden Technical Debt in Machine Learning Systems"><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20200422172657.png" alt="f:id:shibui-yusuke:20200422172657p:plain" title="f:id:shibui-yusuke:20200422172657p:plain" class="hatena-fotolife" itemprop="image"></span><figcaption>Hidden Technical Debt in Machine Learning Systems</figcaption></figure>
</p>
<p>The paper emphasizes that in order to use machine learning effectively in production, we need to develop and operate non-machine learning components. It does not say machine learning is unimportant, but to make machine learning productive in a system, we need many other resources. We have to implement machine learning logic into a web service or system in order to make our business succeed with machine learning. Note that all the systems require business evaluation and system operation. For a plain system, we certainly utilize an infrastructure and resource management, and may optionally use monitoring, alerts and backups. For a machine learning system, we need a prediction server as well as an interface and connection to it. In addition, we can have rather advanced DevOps with a data logging, analytics, visualization, and training pipeline. We do not need to make all of them at once, but to make a machine learning model into our production system, we have to design and develop resource utilization with consideration of cost effectiveness and related systems.</p>
<h2>Structure of the machine learning design patterns</h2>
<p>I wrote the patterns in the following categories:</p>
<ul>
<li>
<p>Training patterns: ways to design a training pipeline</p>
</li>
<li>
<p>QA patterns: test and quality assurance</p>
</li>
<li>
<p>Serving patterns: designs to develop a model into a prediction system</p>
</li>
<li>
<p>Operation patterns: model and system operations</p>
</li>
<li>
<p>Lifecycle patterns: compositions of other patterns</p>
</li>
</ul>
<p>Each category consists of explanations to realize a machine learning lifecycle, from training, QA, and serving to operation, in a production system. The lifecycle pattern is aimed to design an overall system integrating training, QA, serving and operation.</p>
<p>Each pattern includes:</p>
<ul>
<li>
<p>Use case: when to use the pattern</p>
</li>
<li>
<p>Architecture: what issue the pattern is trying to solve and how the system is structured</p>
</li>
<li>
<p>Diagram: overview of the system</p>
</li>
<li>
<p>Pros: advantages of the pattern</p>
</li>
<li>
<p>Cons: disadvantages of the pattern</p>
</li>
<li>
<p>Consideration: things to watch out for when using the pattern</p>
</li>
</ul>
<p>I also wrote some anti-patterns to explain what should not be made.</p>
<h2>What I want the patterns to become</h2>
<p>I tried to make the initial format of the design patterns not be so dependent on a certain platform, language or library. They are written to be able to be deployed on major cloud services and Kubernetes clusters. Choosing which cloud or Kubernetes cluster to use depends on each company’s or system’s scheme, and I made the pattern quite abstract so that they are applicable to as many systems as possible.</p>
<p>I joined Mercari JP in July 2018, as a MLOps engineer, formerly SysML engineer, and had chances to develop and operate various machine learning systems. I guess I have taken part, in some ways, in most of the machine learning systems running in production. Some projects I worked on from their initial stage, some for model development, and some after release. There are some that I joined from production troubleshooting :)>. This machine learning design pattern documentation is the result of my experience with those projects. Since Mercari is a web service based business and uses cloud and Kubernetes, I assume the patterns might be biased to those conditions. I would like to enhance the patterns to compose in major cloud services, such as AWS, GCP and Microsoft Azure, and make workflows based on KubeFlow, to achieve more general and practical patterns and have more fun with machine learning!</p>


Machine learning system in patterns

<p><i>This article is the 14th entry in the <a href="https://tech.mercari.com/entry/2019/08/26/085000">Mercari Bold Challenge Month</a></i>.</p>
<p>Hello everyone, I’m Kengo <a href="https://twitter.com/karolis_ml">(@karolis_ml)</a> and I’m with Mercari this summer as a software engineering intern in the AI Engineering team in Tokyo. In this blog post, I’d like to present the experimental results on information fusion techniques in multimodal modelling in the context of prohibited items detection at Mercari JP.</p>
<h4>TL;DR</h4>
<ul>
<li>Machine learning is essential for a scalable prohibited items detection system</li>
<li>Simple concatenation of feature vectors still a strong baseline for information fusion</li>
<li>Max Pooling demonstrated to be effective for feature selection across modalities</li>
<li>Gated Multimodal Units (GMU), an attention-based mechanism for assigning weights to different modalities, outperforms baseline and provides explainability</li>
</ul>
<p></p>
<h4>Managing Risks at Scale</h4>
<p>A platform as sizeable as Mercari inevitably attracts a small but certain fraction of bad agents on both sides of the marketplace in buyers and sellers, and one such example is prohibited items being listed by malicious sellers including drugs, counterfeit goods, cash, medical devices, and many more. A comprehensive list of prohibited items can be found <a href="https://www.mercari.com/jp/help_center/getting_started/prohibited_items/">here</a> (JP) and <a href="https://www.mercari.com/us/help_center/article/318">here</a> (EN).</p>
<p>Not only does this behavior present legal risks to the users and the platform, it undermines the ecosystem as a whole when it comes to the sense of trust and safety once these items are seen as tolerated by the platform. Ideally, these prohibited items should not be allowed to enter the marketplace in the first place or taken off of the marketplace as quickly as possible, but the sheer volume of listings with over 13 million MAU makes this process extremely cumbersome and costly to manually deal with.</p>
<p>Here comes in the power of machine learning. Automatic detection of these prohibited items with machine learning helps identify previously undetected items with rule-based systems as well as reducing the cost of customer support. As the cost of false positives where a legitimate item is mistakenly considered as illegitimate is quite high in terms of user experience and customer support, our key metric to focus on is precision. This is to ensure that the items the model predicts to be prohibited are actually prohibited.</p>
<p>In solving this problem of binary classification, we first note that listings at Mercari consist of several components including an image of the item, title, description, price, and item condition and so on. As we build a neural network that takes all these factors into account, we need to somehow represent these features as an input vector that can be fed into machine learning models, and information fusion techniques are primarily concerned with how we combine these different modalities in such a way that we can extract information from them more effectively. With this in mind, I will first outline key methods and then results and implications from experiments for one specific category of prohibited items at Mercari.</p>
<h4>Preliminaries</h4>
<p>In the literature of multimodal learning, a common baseline for information fusion is to simply concatenate feature vectors across different modalities such as images and texts, which is surprisingly performant in various multimodal tasks. Concatenation was adopted as the baseline in previous experiments at Mercari also in similar settings (see References at the bottom of this post). Other simple yet powerful methods are element-wise linear sum/multiplication for each unit in a fully connected layer of common size (e.g. 512). Nonetheless, these element-wise operations are often limited in expressiveness as some noisy modalities could clutter the entire feature vectors.</p>

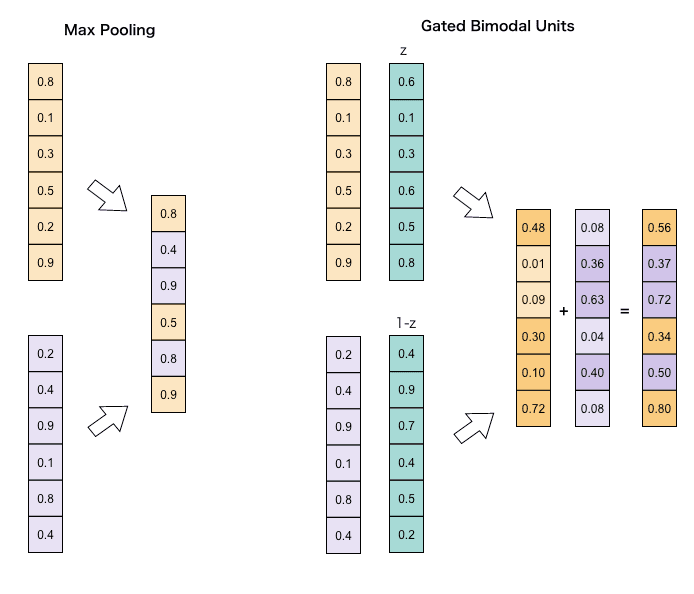

<p>Our main methods of interest are max pooling and Gated Multimodal Units (GMU) as illustrated in Figure 1. <a href="https://tech.mercari.com/entry/2018/04/24/164919">One of our previous experiments</a> demonstrated that max pooling helps identify informative units among multiple layers with different modalities, as empirically shown by <a href="https://arxiv.org/pdf/1708.02099.pdf">Duong et al. (2017)</a>. GMU proposed by <a href="https://arxiv.org/abs/1702.01992">Arevalo et al. (2017)</a>, on the other hand, learns weights for each unit in a layer of given modality, in a manner that resembles the attention mechanism. This can be considered as a continuous version of max pooling with units being averaged over with continuous weights, instead of simply assigning a weight of 1.0 to one modality over the other. In Figure 1, weights for inputs in the first modality shown in the upper half are represented by <b>z</b>, and, in this bimodal case, the other modality is assigned weights of <b>1-z</b>.</p>
<p><figure class="figure-image figure-image-fotolife" title="Figure 1: Max Pooling and Gated Bimodal Units"><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20190828124233.png" alt="f:id:karolis_ml:20190828124233p:plain" title="f:id:karolis_ml:20190828124233p:plain" class="hatena-fotolife" itemprop="image"></span><figcaption>Figure 1: Max Pooling and Gated Bimodal Units</figcaption></figure>
</p>
<p>Before diving into our own data, we first replicated the results of the paper by reimplementing GMU in PyTorch based on authors&#8217; <a href="https://github.com/johnarevalo/gmu-mmimdb">original implementation</a> in Theano using their preprocessed multimodal dataset from <a href="https://www.imdb.com/">IMDb.com</a>, solving a task of movie genre classification with posters as visual input and titles and descriptions as text input.</p>
<p>Besides the GMU&#8217;s competitive performance against the baseline (concatenate) and other existing methods, attention for the feature vector of common size was calculated using the hyperbolic tangent function. In this setting, <b>z</b> indicates the weights of units from the visual input, and Figure 2 from the paper shows the percentage of units that are activated with <b>z</b> more than 0.5 for visual input and less than or equal to 0.5 for text input. Crucially, we confirmed in our environment that genres &#8220;animation&#8221;, &#8220;family&#8221;, and &#8220;musical&#8221; do have a higher percentage of activations than other genres for the visual input, which is sensible in that these movies, especially animation, tend to have a distinctive format or designs in their posters. This provides additional model explainability as we humans have an intuitive and often better understanding of what factors differentiate one class from the other regardless of modalities.</p>
<p><figure class="figure-image figure-image-fotolife" title="Figure 2: Gate Activations for Each Genre in the Muldimodal-IMDb dataset(Arevalo et al., 2017)"><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20190829141409.png" alt="f:id:karolis_ml:20190829141409p:plain" title="f:id:karolis_ml:20190829141409p:plain" class="hatena-fotolife" itemprop="image"></span><figcaption>Figure 2: Gate Activations for Each Genre (Arevalo et al., 2017)</figcaption></figure>
</p>
<h4>Experiments</h4>
<p>Figure 3 illustrates an overview of multimodal modelling with three modalities in our setting at Mercari for prohibited items detection; image, text, and meta information (auxiliary). Features are extracted with sklearn&#8217;s TF-IDF Vectorizer for text and pre-trained InceptionV3 for images. Note that while concatenation can be performed on vectors with different lengths (e.g. (n, 4096) for image and (n, 300) for text to create (n, 4396)), other information fusion methods first need to set up a linear layer to align the dimensions (e.g. 512). Here, we pay particular attention to the bimodal fusion mechanism between image and text as indicated in red in Figure 3, where auxiliary features are simply added to the features via concatenation after the first information fusion. This is simply due to the fact that auxiliary features are rather small in dimensions and known to be less informative compared to the other two.</p>
<p>As per the implementation by <a href="https://arxiv.org/abs/1702.01992">Arevalo et al. (2017)</a>, we added batch normalization and maxout for GMU and max pooling. Since the effect of data normalization was demonstrated in our previous experiment linked above, we trained a different model without batch normalization to reexamine this effect. Additionally, we also included LinearSum (i.e. element-wise sum) as another method for a linear information fusion mechanism, following the experiments by the authors.</p>
<p>Due to the imbalance between prohibited items (positive class) and legitimate items (negative class) in Mercari&#8217;s listings, we downsampled the negative pool to match the size of the positive class. Models are written in TensorFlow to fit into our ML platform, and training the neural networks took 5-6 hours for each model on NVIDIA Tesla V100 with the best model chosen based on the validation loss.</p>
<p><figure class="figure-image figure-image-fotolife" title="Figure 3: Feature Fusion Flow"><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20190910121233.png" alt="f:id:karolis_ml:20190910121233p:plain" title="f:id:karolis_ml:20190910121233p:plain" class="hatena-fotolife" itemprop="image"></span><figcaption>Figure 3: Feature Fusion Flow</figcaption></figure>
</p>
<h4>Results</h4>
<p>The following table summarizes model performance with average precision scores evaluated over an unseen 7-day testing data, as well as precision and recall scores. Negative class was downsampled such that the ratio between positive and negative is 1:3 for each day.</p>
<p>In terms of performance, max pooling trumps other models with average precision of 0.8634 followed by GMU at 0.8631, while concatenation still proving to be a strong baseline at 0.8239. This confirms <a href="https://arxiv.org/abs/1802.02892">Kiela et al. (2018)</a>&#8216;s additional experiments on multimodal-IMDb dataset which was originally provided by Arevalo et al. (2017), where max pooling outperforms GMU by a small margin in the task of movie genre classification with a weighted F-score of 0.6220 against the GMU&#8217;s 0.6180.</p>
<p>Despite its simplicity, LinearSum also appears to fare well at 0.8420, and this is also in line with Arevalo et al (2017)&#8217;s results where LinearSum trails the weighted F-score of GMU by a bit while exceeding the baseline, which we replicated in our environment.</p>
<p>Interestingly, whereas GMU with batch normalization is almost as performant as max pooling, the same model without batch normalization lags behind LinearSum in terms of average precision. This seems to show that, as our past experiment has similarly illuminated, normalization of inputs plays a vital role in information fusion.</p>
<p><figure class="figure-image figure-image-fotolife" title="Table 1: Model Performance"><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20190911031417.png" alt="f:id:karolis_ml:20190911031417p:plain" title="f:id:karolis_ml:20190911031417p:plain" class="hatena-fotolife" itemprop="image"></span><figcaption>Table 1: Model Performance</figcaption></figure>
</p>
<p>Notably, we also extracted weights for each modality in the testing dataset, and confirmed that text has much higher weights than images in this specific category of prohibited items, with the split between the two at around 0.92 for text and 0.08 for images. As the authors demonstrated in Figure 2, we also examined the difference in weights by conditioning on a certain binary attribute X in the testing dataset. We know for a fact that this attribute X has a differential effect on how certain images are presented in this category of specific items, and, as it turns out, images are given higher weights if this attribute takes a value of 1. This indicates that the GMU is properly adjusting weights for certain items where features from one modality are more informative.</p>
<h4>Moving Forward</h4>
<p>The main implication from the findings above is that the weighting mechanism provides a better understanding of the model on top of its superiority over the baseline method of concatenation, which leads to insights as to how to improve performance. One example is that more sophisticated preprocessing and feature extraction methods for the text features will likely improve the overall performance, given that the weight assigned to text is quite high and that we have a rather simple feature extraction technique with tokenization, normalization, and TF-IDF. In fact, our <a href="https://tech.mercari.com/entry/2019/04/26/163000">previous experiment</a> illustrates the superiority of the DARTS-based network with the character-level embeddings for the text input, and an approach like this would definitely be a good start.</p>
<p>Another important takeaway is that having weights for different modalities is also useful in selecting an appropriate number of modalities to use as inputs, especially when some modalities such as images and videos are computationally costly. For instance, while using a visual input might contribute to the model’s performance by an infinitesimal margin, it might not make business sense to deploy a model that is significantly larger and hence harder to maintain.</p>
<p>On top of the superiority in performance compared to the common baseline of concatenation, the explainability provided by an information fusion mechanism like GMU hopefully helps with the exacting task of iterating through different model specifications and preprocessing techniques in other multimodal problems at Mercari and beyond.</p>
<p>Thank you for reading this blog post. If you&#8217;re keen on this topic, please take a look at our past experiments and relevant papers shown below, and stay tuned for more updates from the AI Engineering team!</p>
<h4>References</h4>
<ul>
<li>Arevalo, John; Solorio, Thamar; Montes-y-Gómez, Manuel; González, Fabio A. (2017) Gated Multimodal Units for Information Fusion, <a href="https://arxiv.org/abs/1702.01992">ArXiv:1702.01992</a></li>
<li>Thang Duong, Chi; Lebret, Remi; Aberer, Karl (2017) Multimodal Classification for Analysing Social Media,  <a href="https://arxiv.org/abs/1708.02099">arXiv:1708.02099</a></li>
<li>Kiela, D.; Grave, E.; Joulin, A.; Mikolov, T. (2018) Efficient Large-Scale Multi-Modal Classification <a href="https://arxiv.org/abs/1802.02892">arXiv:1708.02099</a></li>
<li><a href="https://tech.mercari.com/entry/2018/04/24/164919">&#x30DE;&#x30EB;&#x30C1;&#x30E2;&#x30FC;&#x30C0;&#x30EB;&#x30E2;&#x30C7;&#x30EB;&#x306B;&#x3088;&#x308B;&#x4E0D;&#x6B63;&#x51FA;&#x54C1;&#x306E;&#x691C;&#x77E5; &#8211; Mercari Engineering Blog</a></li>
<li><a href="https://tech.mercari.com/entry/2019/04/26/163000">Using neural architecture search to automate multimodal modeling for prohibited item detection &#8211; Mercari Engineering Blog</a></li>
</ul>

Multimodal Information Fusion for Prohibited Items Detection

<p>Hi everyone, I’m <a href="https://twitter.com/hurutoriya">@hurutoriya</a>, a Machine Learning Engineer.</p>
<p>On May 9th, 2018, we held the closing ceremony for the Kaggle competition hosted by Mercari: the Mercari Price Suggestion Challenge.</p>
<p>In the Mercari Price Suggestion Challenge, participants competed to improve Mercari’s price suggestion algorithm. For this, we published the product data of items sold through our US app.</p>
<p><a href="https://mercari.connpass.com/event/84299/">Mercari Kaggle Competition: Closing Ceremony 2018 &#8211; connpass</a></p>
<p><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20181109005757.png" alt="f:id:hurutoriya:20181109005757p:plain" title="f:id:hurutoriya:20181109005757p:plain" class="hatena-fotolife" itemprop="image"></span></p>
<p></p>
<p>For the closing ceremony, we invited the top three contestants from Russia, Poland, and China, as well as top-ranking contestants from Japan. In a panel-discussion format, we asked each contestant to explain their solution and what they think about Kaggle.<br />
This challenge also had a Kernel-only (constraints on computer resources and calculation time) rule, which made for a very interesting competition.</p>
<p>We uploaded videos of the panel discussion, so read on to check it out!</p>
<h3>Part 1</h3>
<p><iframe loading="lazy" width="480" height="270" src="https://www.youtube.com/embed/1ZIFPu0T1iM?feature=oembed" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe><cite class="hatena-citation"><a href="https://www.youtube.com/watch?v=1ZIFPu0T1iM">www.youtube.com</a></cite></p>
<h2>Price suggestion at Mercari</h2>
<h3>The importance of price suggestion at Mercari</h3>
<p>First, let me explain why price suggestion is important here at Mercari.<br />
On the Mercari app, users can choose whatever price they want when listing an item.</p>
<p>Here are some examples which show why this becomes a problem:<br />
-Some items on Mercari cannot be sold because their listing prices are too high compared to the market price.<br />
-Conversely, if the listing price is lower than the market price, customers lose out.</p>
<p>As a solution,</p>
<ul>
<li>users can search Mercari for an item they plan to list, effectively performing market research.</li>
</ul>
<p>However,</p>
<ul>
<li>this is a lot of effort for the user, and</li>
<li>this idea may not occur to new Mercari users.</li>
</ul>
<p>Therefore, listing becomes easier if we <code>automatically display a suitable price</code> for users when they list an item.</p>
<h3>Explanation regarding price suggestion</h3>
<p>Currently, <a href="https://twitter.com/lain_m21">@lain_m21</a>, an intern in the ML team, is helping us with the price suggestion system at Mercari JP.</p>
<p>Tasks involving price suggestion are evaluated by the Root Mean Squared Logarithmic Error (RMSLE) metric.</p>
<p>This is defined as:</p>
<p><span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20181114122755.png" alt="f:id:hurutoriya:20181114122755p:plain" title="f:id:hurutoriya:20181114122755p:plain" class="hatena-fotolife" itemprop="image"></span></p>
<ul>
<li><img src="https://chart.apis.google.com/chart?cht=tx&#038;chl=%20%5Cepsilon" alt=" epsilon"/>: RMSLE score</li>
<li><img src="https://chart.apis.google.com/chart?cht=tx&#038;chl=%20n" alt=" n"/>: Number of predicted data cases</li>
<li><img src="https://chart.apis.google.com/chart?cht=tx&#038;chl=%20p_i" alt=" p_i"/>: Predicted price</li>
<li><img src="https://chart.apis.google.com/chart?cht=tx&#038;chl=%20a_i" alt=" a_i"/>: Real price</li>
<li><img src="https://chart.apis.google.com/chart?cht=tx&#038;chl=%20%5Clog%28x%29" alt=" log(x)"/>: Natural logarithm of x</li>
</ul>
<p>The lower the score is, the higher the accuracy of the price suggestion function.</p>
<p>RMSLE is innately difficult to understand, so for the purpose of this explanation let’s try visualizing it.</p>
<p>Below is a diagram showing the margin of error for RMSLE scores corresponding to a price of 3,000 JPY.<br />
<span itemscope itemtype="http://schema.org/Photograph"><img src="https://storage.googleapis.com/prd-hatenaa-engineering-asset/20181115113703.png" alt="f:id:hurutoriya:20181115113703p:plain" title="f:id:hurutoriya:20181115113703p:plain" class="hatena-fotolife" itemprop="image"></span></p>
<p>The horizontal axis represents RMSLE values.<br />
The vertical axis represents the error range of RMSLE values.<br />
This is a logarithmic metric, so for a RMSLE value of 1.0:<br />
&#8211; Real price: 3,000 JPY<br />
&#8211; Range of estimated prices: 1,103 JPY ~ 8,156 JPY</p>
<p>As you can see, this isn’t quite accurate enough to use in an actual product.</p>
<p>The top contestant of the Kaggle Competition was able to achieve an RMSLE value of 0.3875 with their model. (<a href="https://www.kaggle.com/lopuhin/mercari-golf-0-3875-cv-in-75-loc-1900-s">75 line kernel</a>)</p>
<p>Results:</p>
<ul>
<li>Real price: 3000 JPY</li>
<li>Range of estimated prices: 2051 JPY ~ 4387 JPY</li>
</ul>
<p>Results with these levels of accuracy could be incorporated into the actual product.</p>
<p>The machine learning team was very impressed with the concise, polished nature of the Code Golf written in under 100 lines by the first-place team.</p>
<p><a href="https://www.kaggle.com/lopuhin/mercari-golf-0-3875-cv-in-75-loc-1900-s">Mercari Golf: 0.3875 CV in 75 LOC, 1900 s | Kaggle</a></p>
<p>Even though the code is under 100 lines, it is a very sophisticated piece of Python code and operationalizes the MLP model. We found that even when using the newest product data at Mercari US, this solution significantly enhanced the price suggestion function.</p>
<p>Their final solution has also been published on GitHub.</p>
<p><iframe src="https://hatenablog-parts.com/embed?url=https%3A%2F%2Fgithub.com%2Fpjankiewicz%2Fmercari-solution" title="pjankiewicz/mercari-solution" class="embed-card embed-webcard" scrolling="no" frameborder="0" style="display: block; width: 100%; height: 155px; max-width: 500px; margin: 10px 0px;"></iframe><cite class="hatena-citation"><a href="https://github.com/pjankiewicz/mercari-solution">github.com</a></cite></p>
<p>Explanations regarding the solution have also been published on GitHub.</p>
<p><a href="https://github.com/pjankiewicz/mercari-solution/blob/master/presentation/build/yandex.pdf">mercari-solution/yandex.pdf at master &middot; pjankiewicz/mercari-solution &middot; GitHub</a></p>
<h3>Conclusions</h3>
<p>Our team is focusing on the price suggestion function for the  <code>Japanese version</code> of Mercari. As we provided an English dataset on Kaggle, many problems arise when we try to apply this to the Japanese version of Mercari. Thus, even the model provided by the winning team was unable to achieve the same score in the Japanese version of the app.</p>
<p>Nonetheless, the Mercari Price Suggestion Challenge provided an opportunity for rich debate by many Kagglers discussing various methods and ideas, which will contribute greatly to improving the Mercari JP price suggestion function.<br />
As the price suggestion function improves, we plan to update our readers with the technical details right here on the engineering blog.</p>
<p>Please stay tuned!</p>

Report of Mercari Price Suggestion Challenge

The Mercari AI team’s research “Strategic Coupon Allocation for Increasing Providers’ Sales Experiences in Two-sided Marketplaces” has been accepted at the KDD2024 TSMO 2024 Workshop

mercari AI’s research “LLMs as an Interactive Database Interface for Designing Large Queries” accepted to HILDA Workshop in SIGMOD 2024

How have the organizational challenges of mercari  ML team been solved? A chat with the engineers who launched the company-wide Guild

Mercari AI team presented in NLP2024 “A related document retrieval system using past queries”

Mercari ML Engineers Chingis Oinar and  Teo Narboneta Zosa will give a talk at FOSSASIA Summit2024

Blogs by mercari AI team, delivering information about AI technology and organization

The Mercari AI team’s research “Strategic Coupon Allocation for Increasing Providers’ Sales Experiences in Two-sided Marketplaces” has been accepted at the KDD2024 TSMO 2024 Workshop

mercari AI’s research “LLMs as an Interactive Database Interface for Designing Large Queries” accepted to HILDA Workshop in SIGMOD 2024

How have the organizational challenges of mercari ML team been solved? A chat with the engineers who launched the company-wide Guild

Mercari AI team presented in NLP2024 “A related document retrieval system using past queries”

Mercari ML Engineers Chingis Oinar and Teo Narboneta Zosa will give a talk at FOSSASIA Summit2024

The Mercari AI team’s research “Strategic Coupon Allocation for Increasing Providers’ Sales Experiences in Two-sided Marketplaces” has been accepted at the KDD2024 TSMO 2024 Workshop

mercari AI’s research “LLMs as an Interactive Database Interface for Designing Large Queries” accepted to HILDA Workshop in SIGMOD 2024

How have the organizational challenges of mercari ML team been solved? A chat with the engineers who launched the company-wide Guild

Mercari AI team presented in NLP2024 “A related document retrieval system using past queries”

Mercari ML Engineers Chingis Oinar and Teo Narboneta Zosa will give a talk at FOSSASIA Summit2024

The Mercari AI team’s research “Strategic Coupon Allocation for Increasing Providers’ Sales Experiences in Two-sided Marketplaces” has been accepted at the KDD2024 TSMO 2024 Workshop

mercari AI’s research “LLMs as an Interactive Database Interface for Designing Large Queries” accepted to HILDA Workshop in SIGMOD 2024

How have the organizational challenges of mercari ML team been solved? A chat with the engineers who launched the company-wide Guild

Mercari AI team presented in NLP2024 “A related document retrieval system using past queries”

Mercari ML Engineers Chingis Oinar and Teo Narboneta Zosa will give a talk at FOSSASIA Summit2024

Articles

Natural views for self-supervised learning

How the Machine Learning Team and Backend Team Joined Forces to Create the Feature Team

Machine learning system in patterns

Multimodal Information Fusion for Prohibited Items Detection

Report of Mercari Price Suggestion Challenge
